Dual Injection Unit Design Stable Two-Color Molding Flexible Servo Configuration

GREENST clear dual color series can offer you a more stable injection with a better finishing, plus the injection units can be flexibly arranged for the purpose of saving the budget.

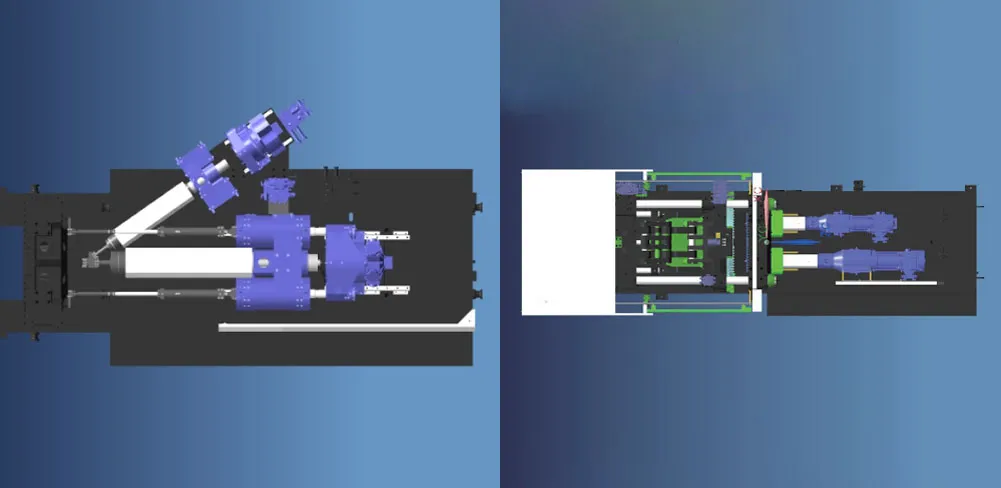

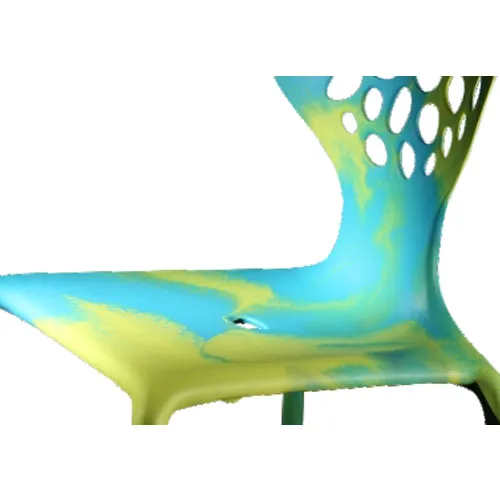

We are also able to offer you custom made injection machine with dual mixed color, the injection units are lined up with V shape for saving the height of workshop, please consult us for a professional solutions.

Get a Free Quote

Product Parameters

Category	Parameter	Unit	SV220D-A	SV220D-B	SV260D-A	SV260D-B	SV380D-A	SV380D-B	SV550D-A	SV550D-B
Injection Unit	Screw Diameter	mm	32 / 36 / 40	26 / 30 / 34	40 / 45 / 50	32 / 36 / 40	45 / 50 / 55	32 / 36 / 40	55 / 60 / 65	36 / 40 / 45
	Screw L/D Ratio	L/D	22.5 / 20 / 18	24 / 21 / 19	22.5 / 20 / 18	22.5 / 20 / 18	22.2 / 20 / 18.2	22.5 / 20 / 18	21.8 / 20 / 18.5	23.3 / 21 / 18.7
	Shot Volume	cm³	122 / 155 / 191	66 / 88 / 113	251 / 318 / 393	122 / 155 / 191	334 / 412 / 499	122 / 155 / 191	618 / 735 / 863	173 / 214 / 270
	Injection Weight (PS)	g	111 / 141 / 174	60 / 80 / 103	228 / 289 / 358	111 / 141 / 174	304 / 375 / 454	111 / 141 / 174	562 / 669 / 785	157 / 195 / 246
	Injection Pressure	MPa	236 / 187 / 151	240 / 180 / 140	228 / 180 / 146	236 / 187 / 151	222 / 180 / 149	236 / 187 / 151	214 / 180 / 153	222 / 180 / 142
	Injection Rate	cm³/s	83 / 106 / 130	52 / 69 / 89	125 / 158 / 195	83 / 106 / 130	156 / 193 / 234	83 / 106 / 130	304 / 362 / 424	103 / 127 / 161
	Injection Speed	mm/s	103	98	100	103	99	103	128	101
	Plasticizing Capacity	g/s	10.1 / 13.3 / 16.1	6.1 / 8.3 / 11.2	17.8 / 23.7 / 29.7	10.1 / 13.3 / 16.1	21.4 / 27 / 33.1	10.1 / 13.3 / 16.1	45.6 / 54.1 / 60.1	14.9 / 18.2 / 24.1
	Screw Speed	rpm	0–220	0–245	0–220	0–240	0–180	0–240	0–255	0–240
Clamping Unit	Clamp Tonnage	kN	2200	2200	2600	2600	3800	3800	5500	5500
	Toggle Stroke	mm	410	410	460	460	530	530	600	600
	Space Between Tie-Bars	mm	825×505	825×505	910×570	910×570	1010×630	1010×630	1170×700	1170×700
	Rotary Platen Diameter	mm	Φ870	Φ870	Φ1000	Φ1000	Φ1120	Φ1120	Φ1250	Φ1250
	Max. Mold Install Diameter	mm	Φ1000	Φ1000	Φ1110	Φ1110	Φ1230	Φ1230	Φ1415	Φ1415
	Bearing Capacity of Rotary Platen	ton	1	1	1.5	1.5	2.2	2.2	3.3	3.3
	Max. Mold Height	mm	520	520	560	560	620	620	710	710
	Min. Mold Height	mm	180	180	200	200	220	220	250	250
	Ejector Stroke	mm	130	130	140	140	150	150	170	170
	Ejector Tonnage	kN	33×2	33×2	33×2	33×2	62×2	62×2	110×2	110×2
	Ejector Number	Piece	5×2	5×2	5×2	5×2	5×2	5×2	5×2	5×2
	Nozzle Center Distance	mm	450	450	500	500	550	550	650	650
Others	Max. Pump Pressure	MPa	20	20	20	20	20	20	20	20
	Motor Power	kW	13	11	18	13	22	13	45	15
	Heater Power	kW	10.5	6.9	12.4	10.5	16.3	10.5	25.5	12.4
	Machine Dimension	m	5.4×1.9×2.4		6.3×2.1×2.6		6.9×2.2×2.6		8.8×2.5×2.7
	Machine Weight	ton	9.6		12.1		15.7		29.5
	Oil Tank Capacity	L	250		380		450		720
