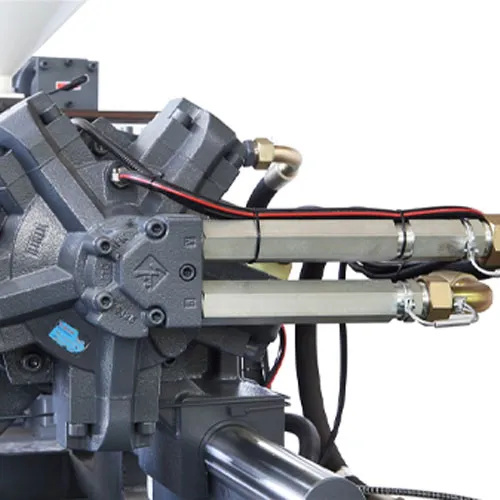

    IJT-SV220 standard servo injection molding machine

    Dedicated Screw System Large Shot Capacity High-Response Servo Drive

    The IJT series servo injection molding machine is engineered to deliver stable, precise, and efficient molding performance for a wide range of plastic applications. Designed with a well-balanced system architecture, it integrates a rigid clamping structure, precise injection control, reliable hydraulic performance, and an intelligent control system to ensure consistent product quality and long-term operational stability.

    Equipped with high-quality hydraulic components, the machine offers precise motion control, fast response, and durable operation. The advanced control system features a color LCD display, independent CPU control, PID barrel temperature regulation, and multi-set mold parameter storage. Remote monitoring and diagnostic support further improve production efficiency and ease of maintenance.

    Get a Free Quote

    Product Parameters

    Category Parameter Unit IJT-SV220
    Injection Unit Screw Diameter mm 45 / 50
    Screw L/D Ratio L/D 21.2 / 19.3
    Shot Volume cm³ 512 / 620
    Injection Weight (PS) g 377 / 466
    Injection Pressure MPa 171 / 158
    Injection Rate cm³/s 189.2 / 228.9
    Injection Speed mm/s 96
    Plasticizing Capacity g/s 24.6 / 32
    Screw Speed rpm 0–205
    Clamping Unit Clamp Tonnage kN 2200
    Toggle Stroke mm 490
    Space Between Tie-Bars mm 530 × 530
    Max. Mold Height mm 550
    Min. Mold Height mm 200
    Ejector Stroke mm 140
    Ejector Tonnage kN 62
    Ejector Number pcs 9
    Others Max. Pump Pressure MPa 14
    Motor Power kW 22
    Heater Power kW 16.05
    Machine Dimension (L×W×H) m 5.75 × 1.4 × 2.1
    Machine Weight ton 6.8
    Oil Tank Capacity L 400

    Product Details

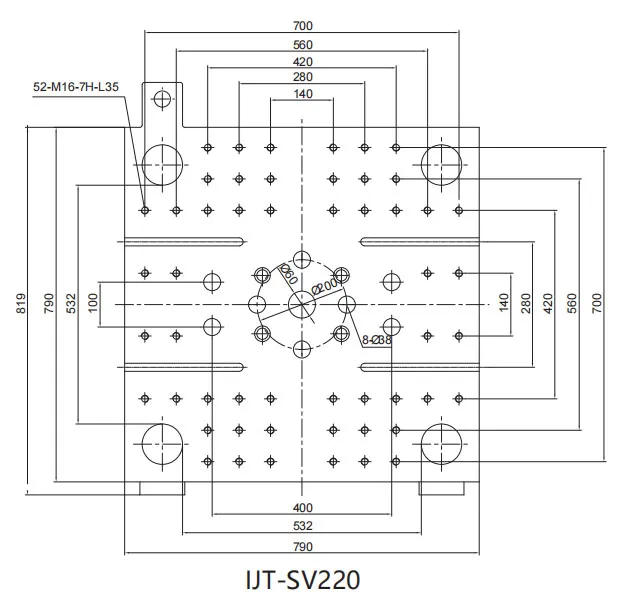

    IJT-SV220 standard servo injection molding machine
