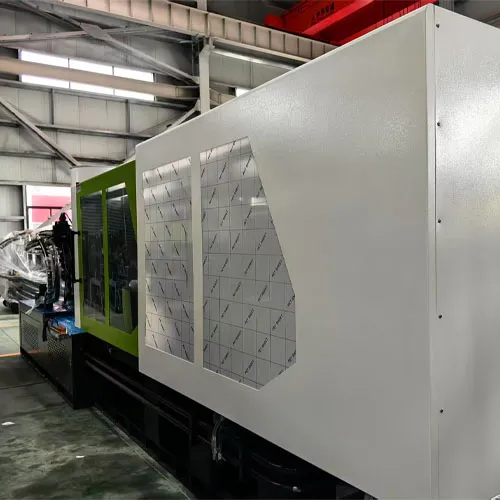

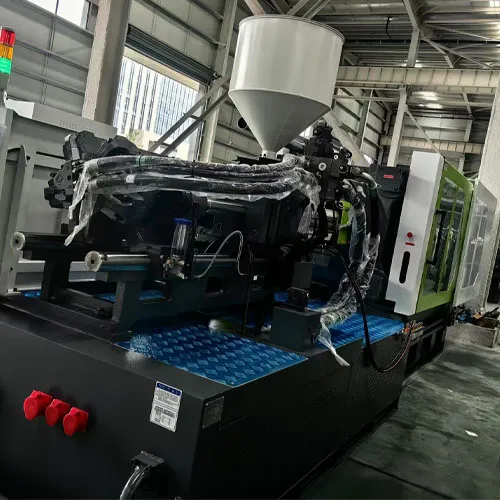

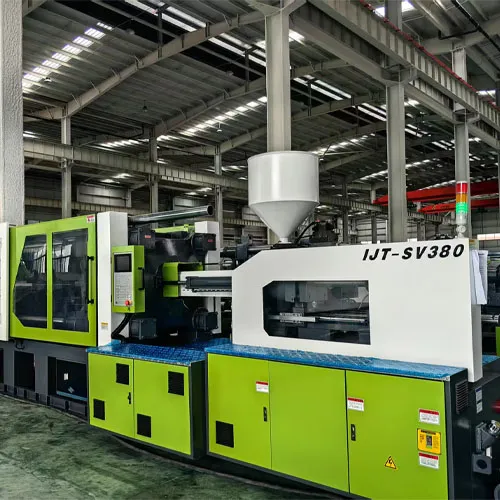

    IJT-SV380 standard servo injection molding machine

    Dedicated Screw System Large Shot Capacity High-Response Servo Drive

    The IJT series servo injection molding machine is engineered to deliver stable, precise, and efficient molding performance for a wide range of plastic applications. Designed with a well-balanced system architecture, it integrates a rigid clamping structure, precise injection control, reliable hydraulic performance, and an intelligent control system to ensure consistent product quality and long-term operational stability.

    Get a Free Quote

    Product Parameters

    Category Item Unit IJT-SV380
    Injection Unit Screw Diameter mm 65 / 70 / 75
    Screw L/D Ratio L/D 21.5 / 20 / 18.6
    Shot Volume cm³ 1184 / 1374 / 1577
    Injection Weight (PS) g 1078 / 1250 / 1435
    Injection Pressure MPa 182 / 157 / 136
    Injection Rate cm³/s 332 / 386 / 443
    Injection Speed mm/s 100
    Plasticizing Capacity g/s 57.4 / 70.3 / 84.6
    Screw Speed rpm 0 ~ 195
    Clamping Unit Clamp Tonnage kN 3800
    Toggle Stroke mm 670
    Space Between Tie-Bars mm 730 × 710
    Max. Mold Height mm 720
    Min. Mold Height mm 250
    Ejector Stroke mm 170
    Ejector Tonnage kN 110
    Ejector Number Piece 13
    Others Max. Pump Pressure MPa 14
    Motor Power kW 36
    Heater Power kW 26.25
    Machine Dimension (L×W×H) m 7.1 × 1.8 × 2.5
    Machine Weight ton 15.5
    Oil Tank Capacity L 900
