    SQ-100~1000ML8-Station High Speed Wheel Blow Molding MachineI [1-6 Layers)

    8-Station High-Speed Output ≤1L, 1–6 Layers Auto Neck Cut

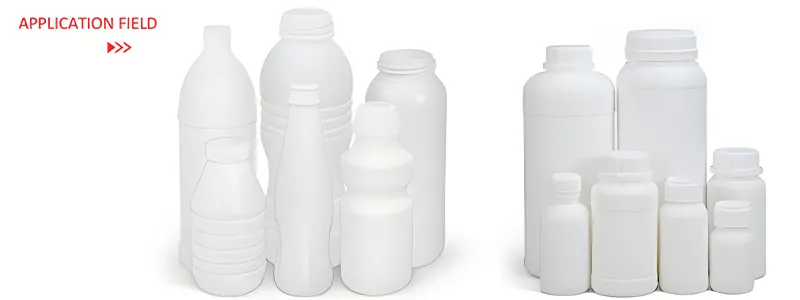

    The SQ-100~1000ML 8-Station High Speed Wheel Blow Molding Machine (1–6 Layers) is designed for fast, stable production of single- or multi-layer (1–6) hollow plastic products below 1 liter, such as pesticide bottles, fruit milk bottles, medical bottles, and chemical bottles. It is fully automatic with neck cutting, and an electric parison controller is available as an option.

    Built as an upgraded replacement for traditional rotary blow molding machines, the 80 model offers 8 molds and 1 die head, delivering 1000–2000 pcs/hr theoretical output. Key specs include max product volume 1000 ML, allowable mold width 125 MM, allowable mold thickness 118 MM, work pressure 0.4–0.7 MPA, total power 42 KW, 80 MM extruder, main motor power 22-6级, and machine size 5900×1300×1900 MM.

    Get a Free Quote

    Product Parameters

    Parameter Unit 80 Model
    Model / 80 Model
    Max. Product Volume ML 1000
    Mold Quantity / 8
    No. of Die Head / 1
    Allowable Mold Width MM 125
    Allowable Mold Thickness MM 118
    Theoretical Product Output PCS/HR 1000–2000
    Work Pressure MPA 0.4–0.7
    Total Power KW 42
    Extruder MM 80
    Main Motor Power KW 22-6级
    Size (L×W×H) MM 5900×1300×1900

    Product Details

    SQ-100~1000ML8-Station High Speed Wheel Blow Molding MachineI [1-6 Layers)
