    SQ-100ML~5L Full-Electric Blow Molding MachineI (1-6 Layers)

    1–6 Layers, Full Servo Fast & Low Power Oil-Free, Low Noise

    The SQ-100ML~5L Full-Electric Blow Molding Machine (1–6 Layers) is designed for fast, energy-saving production of hollow plastic products with a 1–6 layer structure and full servo drive, delivering oil-free and more environmentally friendly operation with low noise.

    Built for efficient, stable running, the 75 model supports up to 5000 ML product volume and 220 MM product diameter, with theoretical capacity of 300–2000 PCS/H. It works with PE / PP / EVA, uses a PLC core touch screen, and features a 75 MM screw (L/D 25:1) with motor power 18.5–30 KW and plasticizing capacity 70–95 KG.

    Get a Free Quote

    Product Parameters

    Parameter Unit 75 Model
    Model / 75 Model
    Max. Product Volume ML 5000
    Max. Product Diameter MM 220
    Theoretical Production Capacity PCS/H 300–2000
    Allowable Mold Width MM 360
    Allowable Mold Thickness MM 160–240
    Size (L×W×H) MM 3600×2100×2400

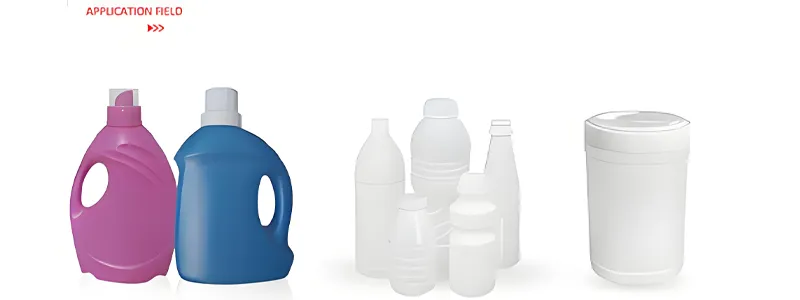

    Applicable Raw Materials / PE / PP / EVA
    Control Method / PLC color touch screen
    Screw Diameter MM 75
    Screw L/D Ratio L/D 25:1
    Motor Power KW 18.5–30
    Plasticizing Capacity KG 70–95

    Product Details

    SQ-100ML~5L Full-Electric Blow Molding MachineI (1-6 Layers)
