    SQ-15~30L Continuous Fully Automatic Blow Molding MachineI [1-6 Layers)

    15–30L Hollow Products Continuous Auto Parison Control + PLC System

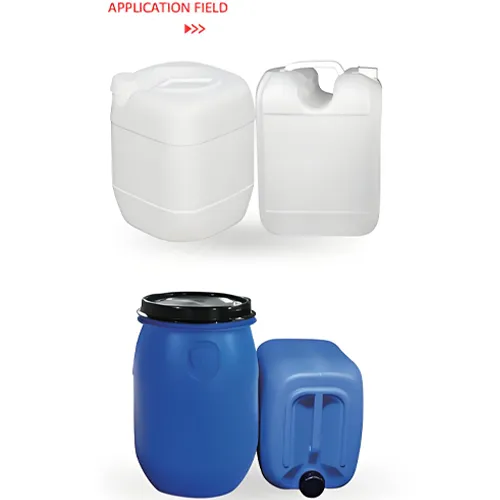

    The SQ-15~30L Continuous Fully Automatic Blow Molding Machine (1–6 Layers) is designed for fully automatic, continuous extrusion of 15–30L hollow plastic products. It supports 1–6 layer designs based on customer needs, making it suitable for products such as urea drums, jerrycans, detergent barrels, and chemical drums.

    Equipped with a parison controller and an advanced PLC operation system, the machine enables stable operation and flexible production for different 15–30L hollow product requirements.

    Get a Free Quote

    Product Parameters

    Parameter Unit Single Station (3 Layers) Double Stations (3 Layers)
    Machine Model / Single Station (3 Layers) Double Stations (3 Layers)
    Product Volume L 15–30L 15–30L
    Screw Diameter MM 65+80+65 75+90+75
    Screw L/D Ratio L/D 28:1 28:1
    Screw Motor Power KW 18.5+30+18.5 22+45+22
    Plasticizing Capacity (HDPE) KG/H 230 320
    Mold Open Distance MM 450–1000 450–1000
    Mold Platen Dimension MM 650*715 650*715
    Mold Shifting Distance MM 700 800
    Blow Air Pressure MPA 0.8 0.8
    Machine Size (L×W×H) M 7.0×3.6×3.8 8.0×5.6×3.8

    Product Details

    8-Station High-Speed Output
